Built & serviced in Lemoyne, PA — by firefighters, since 2009
Blue Mountain skid units
UTV fireskid units
Customizable to give you both firefighting capability and patient transport, built on a UV-resistant polypropylene tank that carries a limited lifetime warranty.
Quoted per build
What's in a build+
A UTV skid unit is a package, not a part number: a UV-resistant polypropylene tank in a custom size, a pump, plumbing and discharges, a booster hose reel, storage, and — if you want it — a litter position and an attendant seat. You choose the pieces. We build the skid around your machine's bed.
Fit and payload+
Every build starts with the vehicle, not the tank. Bring the make, model, and model year, the inside dimensions of the bed, and the manufacturer's published cargo box and total payload ratings for your machine. Water alone weighs about 8.34 pounds per gallon, so tank size is a weight decision before it is a water decision.
Quoting and support+
There is no shelf price on a custom skid, and we do not publish a lead time we cannot hold. Send us the machine and the mission and we will quote the build, the components, and the schedule together. EFES is at 440 Oak Street, Lemoyne, PA 17043. Call (800) 504-2044 or request a quote.
Product overview
Our UTV skid units are customizable to give you both firefighting capability and patient transport. We offer custom tank sizes constructed from UV-resistant polypropylene for lightweight and durability, and every tank comes with a limited lifetime warranty.
One machine covers two calls your engine cannot reach. Water, a pump, and a booster reel handle the trail fire, the field fire, the mulch pile behind the ball park. A litter position and an attendant seat handle the injured hiker, the rider down at the track, the patient at the far end of a festival ground. Same bed, same two crew members, no second vehicle to staff.
That is firefighting capability and patient transport, and no more — it is not an ambulance, it is not built to a ground-ambulance standard, and nothing here is a licensing claim. Confirm your state rules and your medical director's protocols before you build a transport configuration. If you need a purpose-built low-profile unit instead, see medical skid units.
01Fit and payload
Payload decides your tank size
A UTV bed is a hard limit, and water is heavier than most committees expect when they start sketching. Three numbers decide the build:
01
Water weighs about 8.34 lb per gallon. A 65-gallon tank is roughly 542 lb of water before the skid frame, pump, hose, or crew.
02
Polaris publishes a 1,000 lb cargo box capacity and a 1,500 lb total payload for the Ranger XP 1000. Can-Am publishes the same figures for the Defender HD10.
03
Total payload includes your firefighters and their gear, so what is actually left for a skid is less than the box rating suggests.
Before you pick a tank size
Pull the rated bed and payload capacity for your exact model and model year, and bring that number to the quote — we size the tank to your machine rather than the other way around. Comparing this against a pickup-bed build? Start at the firefighting skid units buyer's guide.
Every unit is quoted per build
Send us the machine and the mission.
At a glance
What you are actually specifying
EFES publishes the tank material and the tank warranty. The rest is set by your machine, your mission, and the components you choose, so it is confirmed on your quote.
| Specification | Detail |
|---|---|
| Tank material | UV-resistant polypropylene |
| Tank warranty | Limited lifetime warranty on the tank |
| Tank capacity | Custom sizes, set against your machine's rated bed and payload capacity |
| Pump | Hale Products, CET Fire Pumps, or Mercedes Textiles, matched to your duty point |
| Specification | Detail |
|---|---|
| Hose reel | Hannay Reels |
| Patient transport layout | Litter position and attendant seat, configured per build |
| Built in | Lemoyne, PA, USA |
| Price | Quoted per build |
FrequentlyAsked Questions
Before you request a quote
Yes — that is how EFES configures them. A litter position and an attendant seat are built onto the same frame as the tank, pump, and reel. The trade-off is space and weight: room for a patient and an attendant means a smaller tank, so the two get balanced during the build conversation rather than after delivery.
That is set by your machine, not by the skid. Water weighs about 8.34 pounds per gallon, so a 65-gallon tank is roughly 542 pounds before the frame, pump, hose, and crew. Polaris publishes a 1,000 lb cargo box capacity and a 1,500 lb total payload for the Ranger XP 1000, and Can-Am publishes the same for the Defender HD10. Pull the ratings for your exact model and model year and we will size the tank inside them.

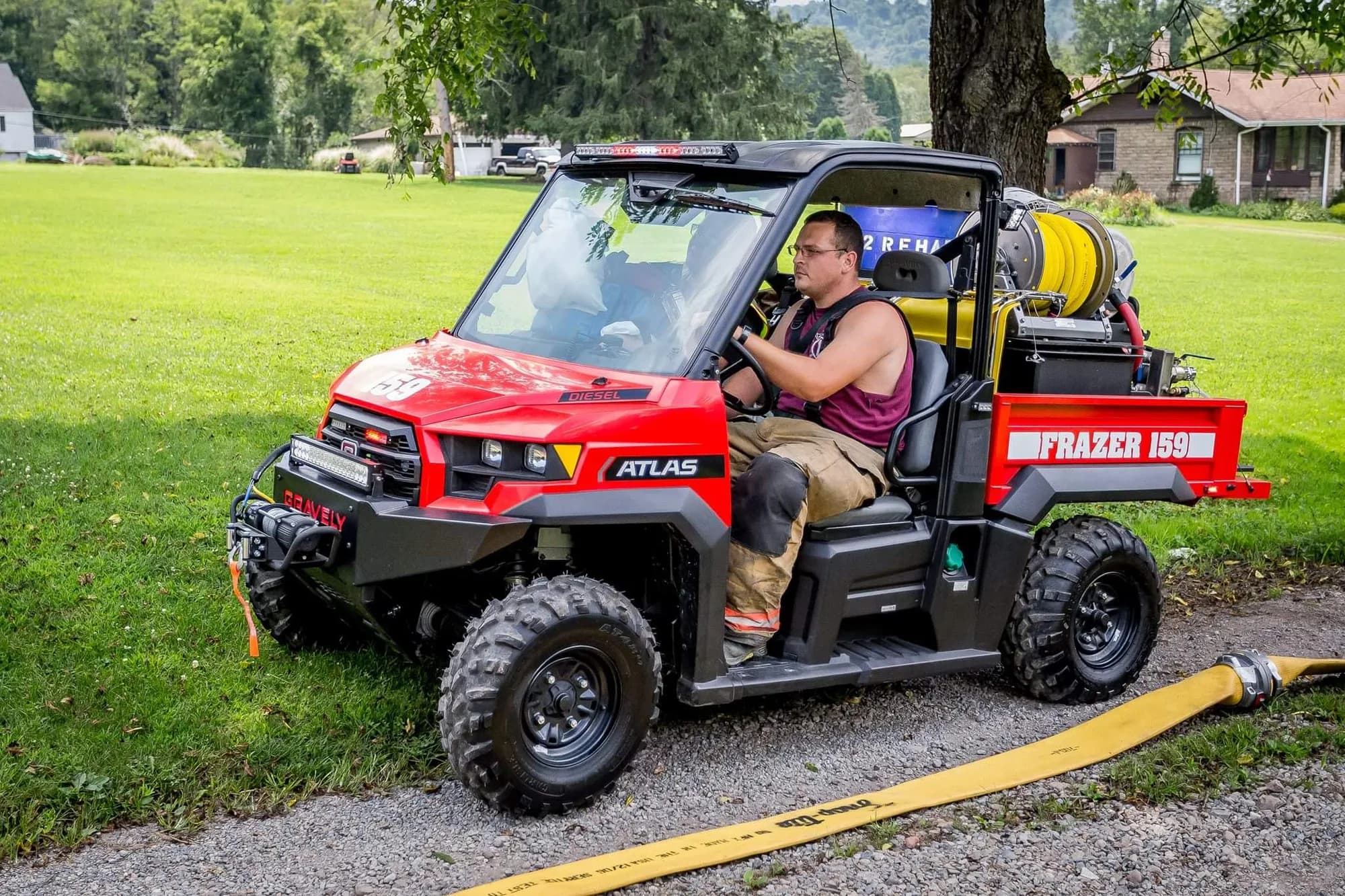

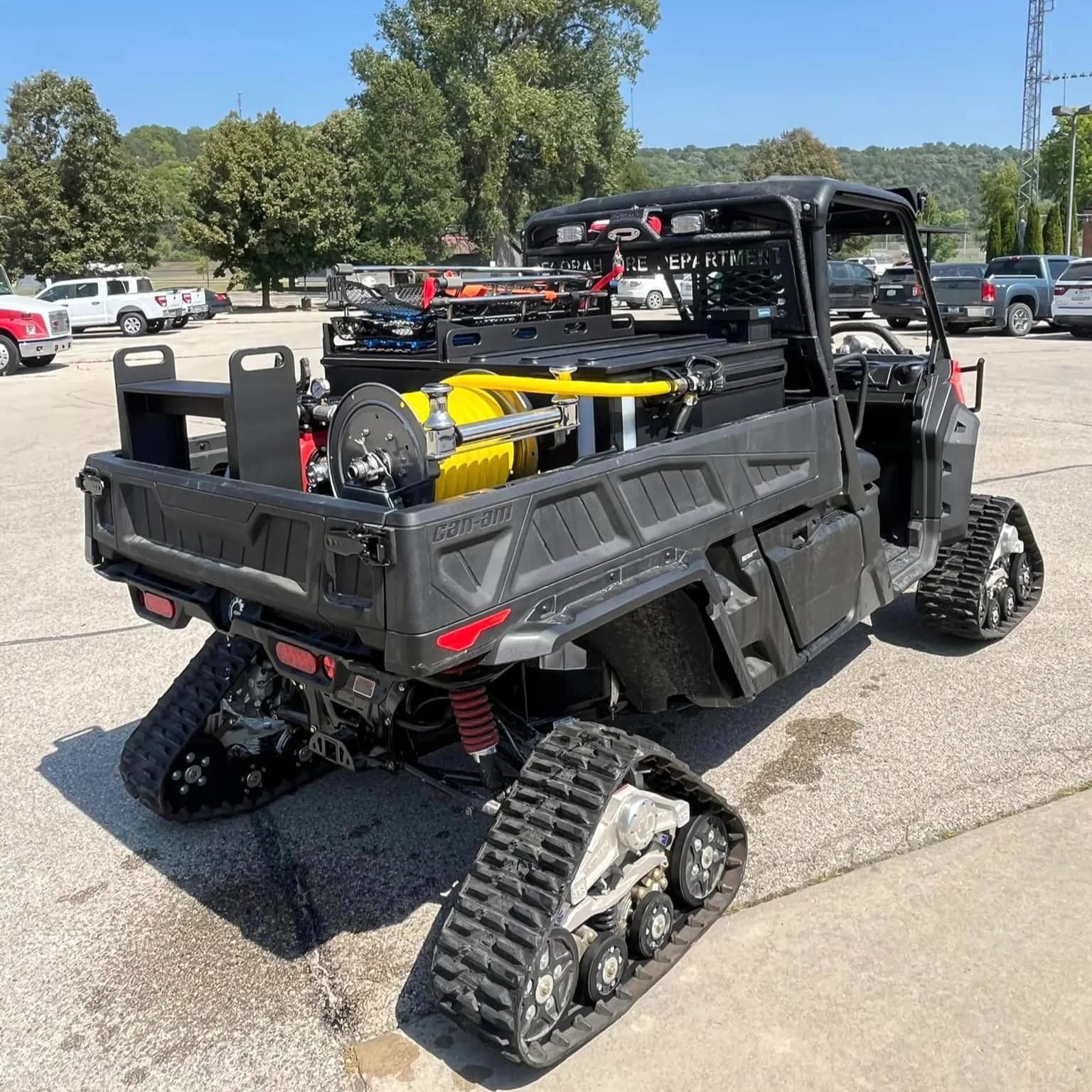

Because tank sizes are custom, the skid is built to your bed rather than pulled off a shelf. Send the make, model, and model year, the inside dimensions of the cargo box, and the manufacturer's published box and payload ratings. EFES's published UTV installations include Gravely Atlas JSV and Can-Am Defender machines, among others.
Every unit is quoted per build, because the tank size, pump, reel, hose, storage, and patient-transport layout all change the number. Lead time depends on component availability and the shop schedule, so we quote it alongside the build instead of publishing a figure we cannot hold. Call (800) 504-2044 or request a quote and we will price your configuration.
If the hard part is reaching the fire, buy the UTV — a small tank you can drive to the flames beats a large tank sitting at the trailhead. If the hard part is staying on the fire, you want more water and road speed: see brush truck skid units.
Built in Lemoyne, PA
Get your UTV skidunit quoted
Eastern Fire Equipment Services can handle your entire skid unit project from start to finish, and we build the Blue Mountain Skid Unit at 440 Oak Street in Lemoyne, Pennsylvania.
Bring us the machine, the ground you cover, and what the unit has to do on a call.
Call (800) 504-2044 or request a quote. If your committee wants to work through the configuration in person, book a build meeting.
